Product type

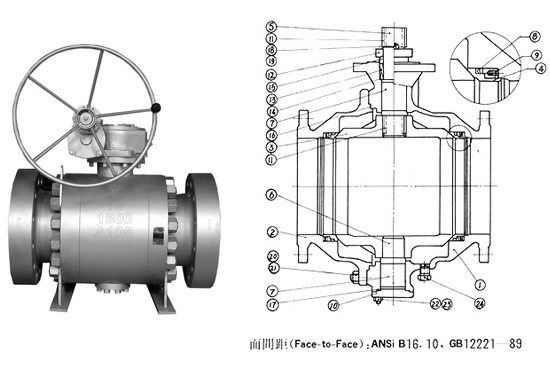

Forged Ball Valve

NO Parts name Material number
331 442 111
1 Valve body CF8 CF8M WCB
2 Wall valve body CF8 CF8M WCB
3 Ball body 304·HCr 304·HCr 304·HCr
304·SFNi 316·SFNi 304·SFNi
4 Insertion piece 304·ST 316·ST 304·ST
5 Valve bar 329·SFNi 329·SFNi 410·SFNi
6 Low Valve bar 329·SFNi 329·SFNi 410·SFNi
7 Bearing ≤350℃ RPPL RPPL RPPL
≤500℃ Soft·Carbon Soft·Carbon Soft·Carbon
8　 Joint ring ≤250℃ TFE TFE TFE
≤500℃ Metal Ring Metal Ring Metal Ring
9 Spring INCONEL INCONEL INCONEL
10 Bottom cover 304 316 25Mn
11 Key 329 329 410
12 Gland 304 316 35·Zn
13 disc valve ≤350℃ RPPL RPPL RPPL
≤500℃ Soft·Carbon Soft·Carbon Soft·Carbon
14 washer 304 316 304
15 Push ring 304 316 304
16 insertion piece ≤350℃ RPPL RPPL RPPL
≤500℃ Soft·Carbon Soft·Carbon Soft·Carbon
17 insertion piece ≤350℃ RPPL RPPL RPPL
≤500℃ Soft·Carbon Soft·Carbon Soft·Carbon
18 Screw stud 35CrMoA 35CrMoA 35CrMoA
19 Screw nut 45·Zn 45·Zn 45·Zn
20 Screw stud 35CrMoA 35CrMoA 35CrMoA
21 Screw nut 45·Zn 45·Zn 45·Zn
22 Screw stud 35CrMoA 35CrMoA 35CrMoA
23 Screw nut 45·Zn 45·Zn 45·Zn
24 plug 316 316 25
