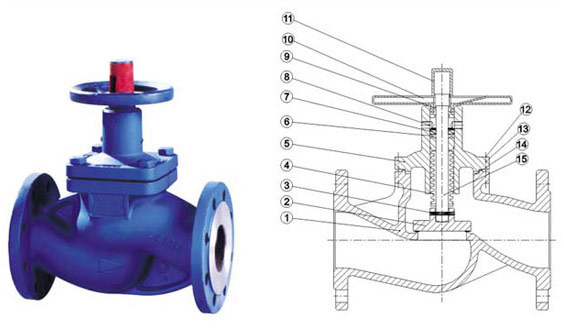

KSB type bellow sealed valve

Main Parts Materials:

No.	Part Name	Material
1	Body	GS-C25, CF8, CF3
2	Disc	2Cr13, F304, F316
3	Hinge Pin	F304,F316
4	Bellows Combination	F304, F316L
5	Bonnet	GS-C25,F304 ,F316
6	Packing	Flexible graphite, PTFE
7	Gland	25#, F304, F316
8	Inner Hexagon Screw	25#, F304, F316
9	Nut	ZQA 19-4
10	Hand Wheel	Carbon Steel
11	Cap	25#
12	Hexagon Nut	ASTM A193 2H,A193-8,A193-8M
13	Bolt	ASTM A193 B7, A193-B8, A193-B8M
14	Combination Gasket	Flexible graphite+stainiess steel, PTFE
15	Stem	2Cr13, F304, F316
