V type ball valve



Description

1, Conforms to API 599,
2, Flanges drilled to ASNI B16.1,
3, Face to face dimensions conform to ASNI B16.10,
4, Suitable media: water, oil , gas.

Material List

Pressure stage Size

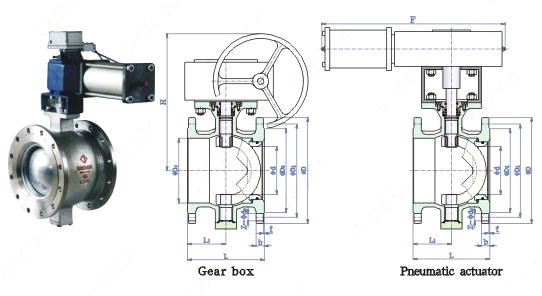

DN NPS L L1 d D D1 D2 Dc b f Z-d0 H1 F H W
Class150
PN20		 25 1 102 51 19 108 79.5 51 38 11.5 1.6 4-15 57 400 200 11
40 1-1/2 114 57 32 127 98.5 73 49 14.5 1.6 4-15 63 400 205 14
50 2 124 62 38 152 120.5 92 60 16 1.6 4-19 92 400 225 20
65 2-1/2 145 72.5 51 178 139.5 105 75 17.5 1.6 4-19 100 400 235 24
80 3 165 82.8 64 190 152.5 127 89 19.5 1.6 4-19 108 400 260 33
100 4 194

97

 76 229 190.5 157 113 24 1.6 4-19 117 400 270 49
125 5 210 105 102 254 216. 186 140 24 1.6 8-22 140 455 320 59
150 6 229 114.5 127 279 241.5 216 164 25.5 1.6 8-22 177 455 340 80
200 8 243 121.5 152 343 298.5 270 205 29 1.6 8-22 200 700 390 108
250 10 297 148.5 203 406 362 324 259 31 1.6 12-25 252 700 420 145
300 12 338 169 254 483 432 381 300 32 1.6 12-25 270 700 510 190

Pressure stage Size
DN NPS L L1 d D D1 D2 Dc b f Z-d0 H1 F H W
Class300
PN50		 25 1 102 51 19 124 89 51 38 17.5 1.6 4-19 57 400 200 13
40 1-1/2 114 57 32 156 114.5 73 49 21 1.6 4-22 63 400 205 16
50 2 124 62 38 165 127 92 60 22.5 1.6 8-19 92 400 225 22
65 2-1/2 145 72.5 51 190 149 105 75 25.5 1.6 8-22 100 400 235 26
80 3 165 82.8 64 210 168.5 127 89 29 1.6 8-22 108 400 260 37
100 4 194

97

 76 254 200 157 113 32 1.6 8-22 117 400 270 55
125 5 210 105 102 279 235 186 140 35 1.6 8-22 140 455 320 65
150 6 229 114.5 127 318 270 216 164 37 1.6 12-22 177 455 340 95
200 8 243 121.5 152 381 330 270 205 41.5 1.6 12-25 200 700 390 138
250 10 297 148.5 203 445 387.5 324 259 48 1.6 16-29 252 700 420 185
300 12 338 169 254 521 451 381 300 51 1.6 16-32 270 700 510 240
