Product type

DIN Cast iron Check valves

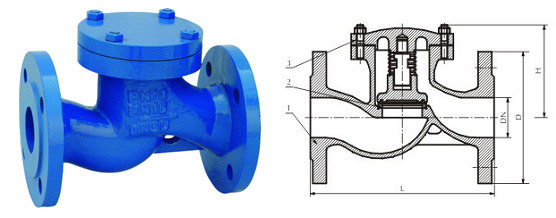

Components

1 Body Cast iron/ductile iron
2 Bonnet stainless steel
3 Disc Cast iron/ductile iron
4 BONNET Cast iron/ductile iron

Application

Face to face is according to DIN3202-F1
Flange drilled is according to  DIN2532/2533

Test

Working pressure PN10 PN16
Shell pressure 15bars 24bars
Seat pressure 11bars 17.6bars

Dimensions(Unit:mm)

Size(Inch) 40 50 65 80 100 125 150 200 250 300
L 200 230 290 310 350 400 480 600 730 850
H 95 100 115 135 145 160 180 270 320 350
Working Pressure:PN10
Dia.of flange 150 165 185 200 220 250 285 340 395 445
Nos.of hole 4 4 4 `8 8 8 8 8 12 12
Dia.of hole 18 18 18 18 18 18 23 23 23 23
P.C.D 110 125 145 160 180 210 240 295 350 400
K 88 102 122 138 158 188 212 268 320 370
Working Pressure:PN16
Dia.of flange 150 165 185 200 220 250 285 340 405 460
Nos.of hole 4 4 4 8 8 8 8 12 12 12
Dia.of hole 18 18 18 18 18 18 22 22 26 26
P.C.D 110 125 145 160 180 210 240 295 355 770
K 88 102 122 138 158 188 212 268 320 378
